Introduction

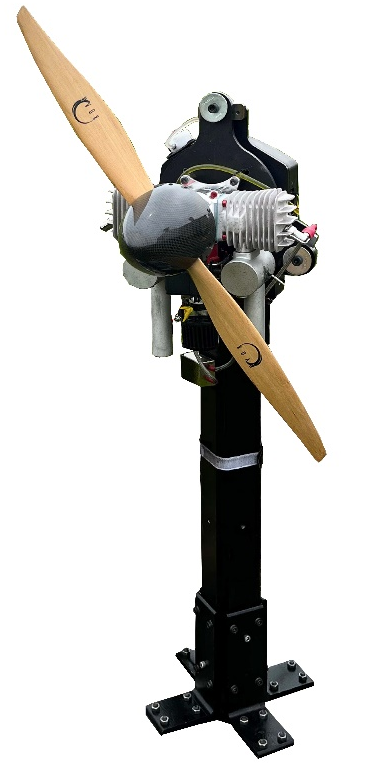

The Flight Stand 60 ICE Engine Test Stand provides precise characterization and performance evaluation of internal combustion engines and propellers.

Equipped with an advanced measurement system, it accurately captures thrust, torque, RPM, fuel flow rate, temperature, power, and propeller efficiency.

Specifications

■  Thrust: ±600 N

■  Torque: ±30 Nm

■  Fuel Flow Measurement: 20 - 800 mL/min

■  Thermocouple: Up to 800°C

■  Airspeed Sensor: 2 to 28 m/s

■  RPM Sensor:

    •  Two-blade propeller: 16,800 RPM

    •  Three-blade propeller: 11,200 RPM

    •  Four-blade propeller: 8,400 RPM

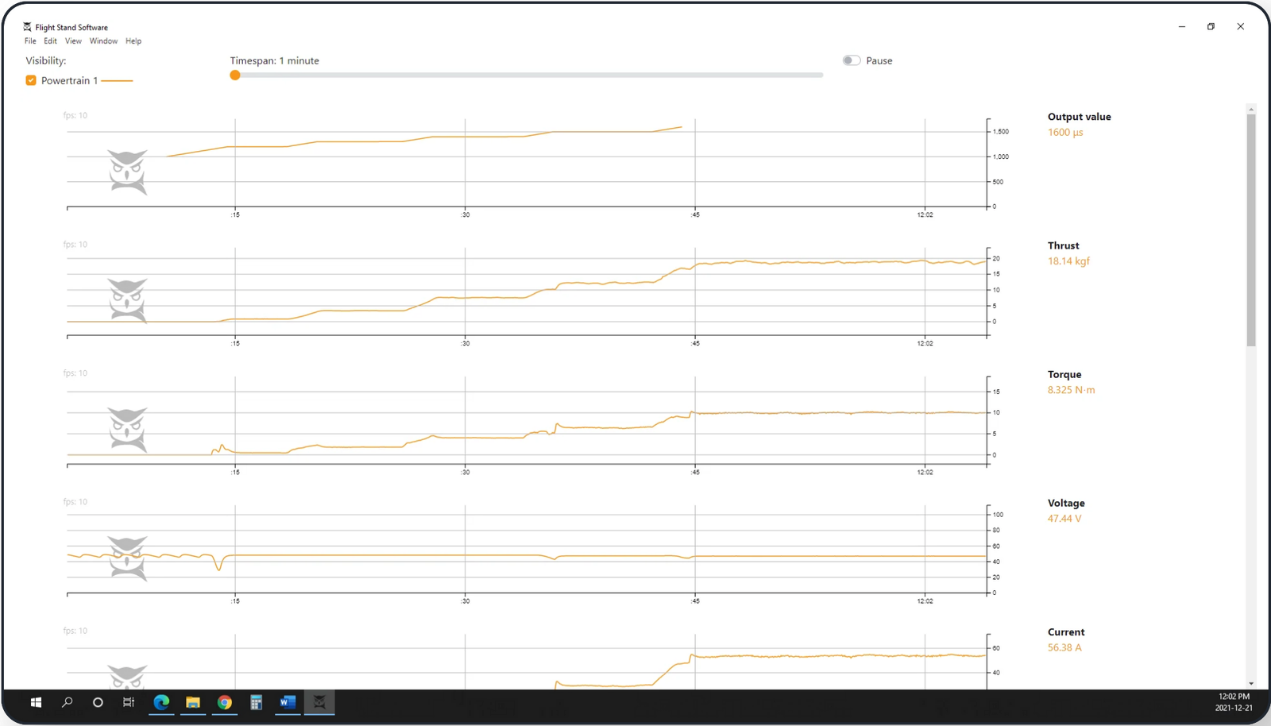

Flight Stand Software

■  Dynamic testing with manual or automatic control

■  Included with your Flight Stand

Key Features

These are some of the key features of the Flight Stand 60 ICE engine test stand:

■  Real-time dynamic testing: made possible by the system's sampling rate of up to 1,000 Hz, allowing you to perform frequency and step input parameter identification.

■  Vibration resistant: The stand comes with three sets of vibration dampers, each tailored for different engine sizes. These dampers have been carefully chosen to accommodate the weight and structure of combustion engines. Extensive testing with real engines and propellers has proven the rig's durability, while ensuring precise measurement accuracy.

■  ASTM Calibration: our load cells are internally calibrated to ASTM standards to ensure maximum measurement precision. Thrust and torque are both calibrated according to ASTM procedures (details next page).
