Introduction

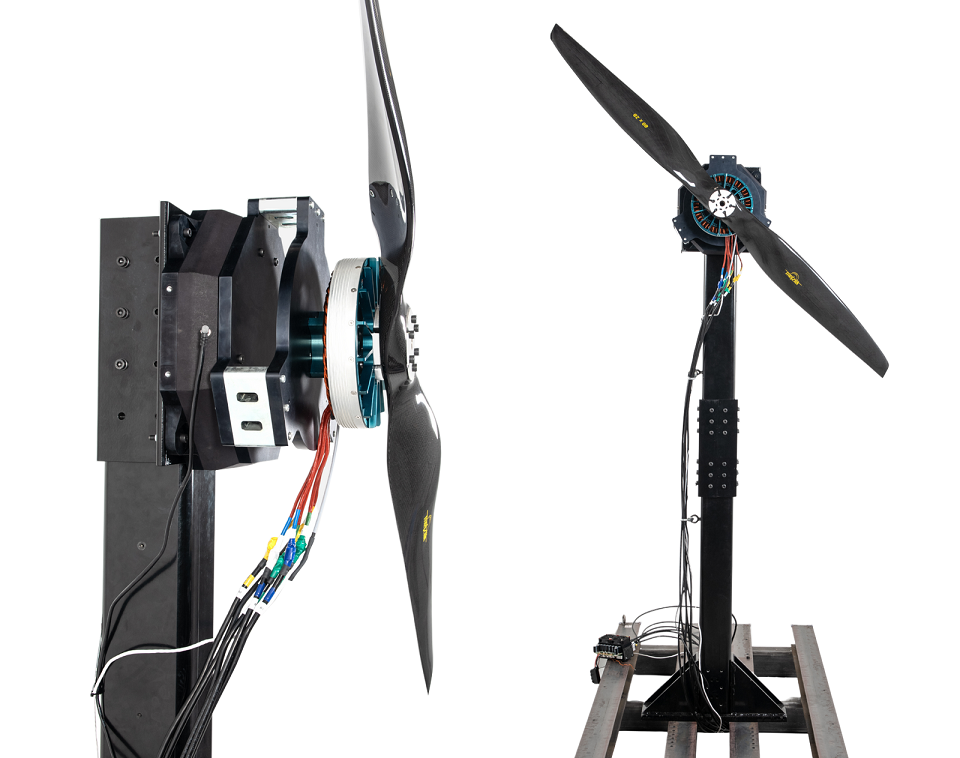

The Flight Stand 500 thrust stand allows you to precisely characterize and evaluate the performance of your motors and propellers by measuring thrust, torque, RPM, current, voltage, temperature, propeller efficiency and motor efficiency.
Specifications
| Specification | Value | |
| Measurement Information | Sampling rate | 1,000 Hz |
| Thrust calibration | ASTM E74 | |
| Torque calibration | ASTM E2428 | |
| Voltage and Current | Voltage range | 0 - 1,000 V |
| Current range | 200, 300, or 500 A | |
| Thrust | Range | ±5,000 N |
| Torque | Range | ±1,500 Nm |
| RPM Sensor | Range | 400 to 30,000 RPM |

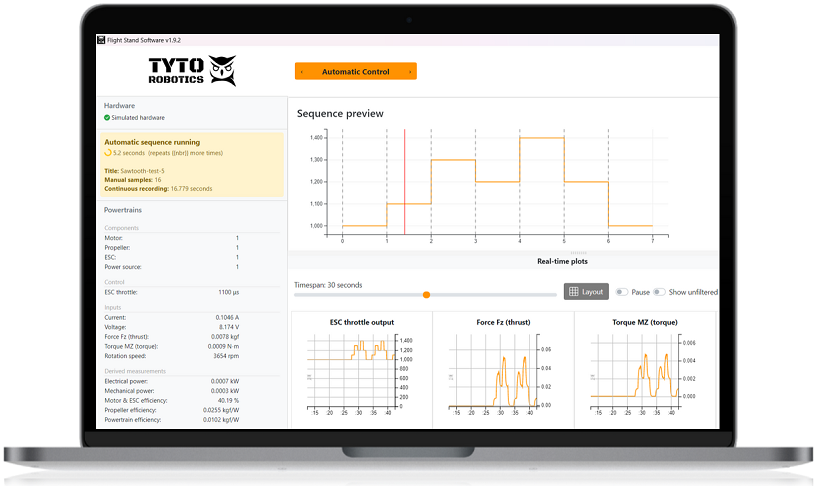

Flight Stand Software
The Flight Stand Software controls your thrust stand and records data. You can manually control tests with a throttle slider or automate tests using a table, data from a .CSV file, or the Python API.

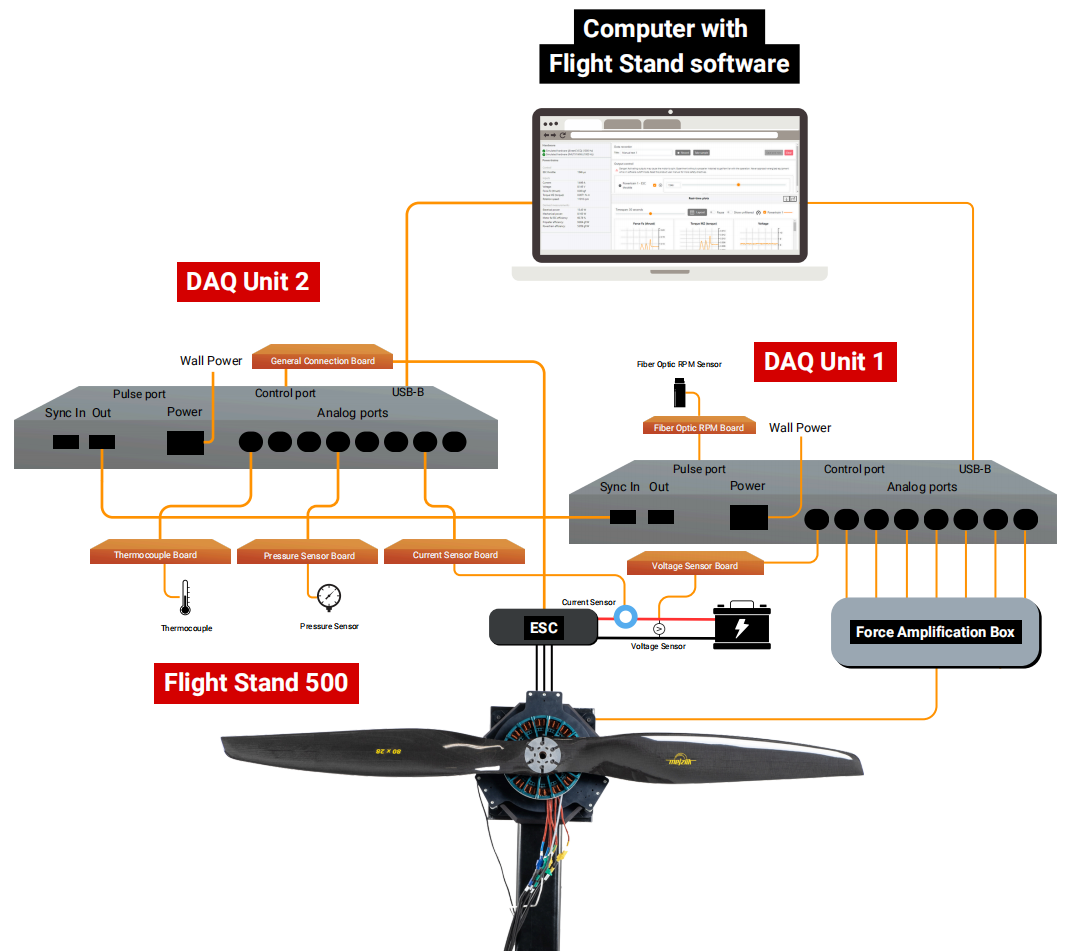

Example Test Schematic
