Overview

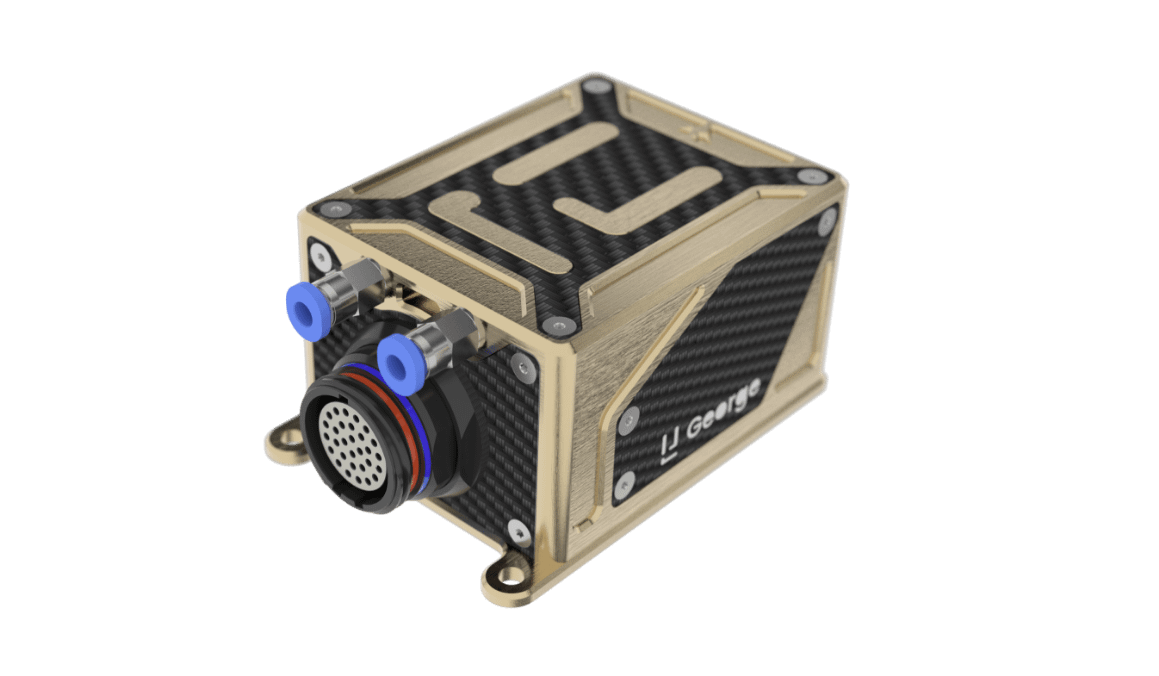

George combines the flexibility and over a decade's worth of open-source innovation in UAS autopilots with the robustness of a certifiable DAL-C hardware and a DAL-C safety and sensor processor. George has the aircraft.
CubePilot
George is built on the trusted and proven CubePilot autopilot. Migrate your existing Ardupilot or PX4 software and configuration to George's robust DO-254 DAL-C hardware.
Lightweight and low power consumption
UAS have limited energy resources that need to support your mission. George is engineered specifically to minimize size, weight, and power consumption for longer flight times and larger payloads.
Certifiable and tested to aviation standards
George's safety and sensor processing system is engineered to DO-178C DAL-C while the DO-254 DAL-C hardware platform is engineered to DO-160G and MIL-STD-810H environmental standards.
SkyLine Cloud- - Based C2 Compatible
Integrate George with microLink 2x2 MIMO for ISM band operations or SkyLink for C-band protected-spectrum and begin communicating to ground radios for secure and reliable BVLOS missions.
Detect and Avoid(DAA) Ready
Enable ADS-B IN by integrating pingRX Pro to see nearby aircraft. For high altitude and mission-critical operations, add the ping200X transponder to be seen by surrounding aircraft and for access to controlled airspace.
Works with truFYX, The most reliable GPS
George seamlessly integrates with truFYX ,uAvionix's TSO-C145e GPS. When the credibility and integrity of your position source matters, you can trust truFYX.
Parameters
|
Specification
|
Value
|
|
Input Voltage/Power
|
14 or 28V
2.5W
|
|
Size
|
45x75x32mm
|
|
Weight
|
99 grams
|
|
Operating Temp
|
-10° to 55° C
|
|
Internal Peripherals
|
|
Core
|
cubeOrange
|
|
Compass
|
3 axis RM3100
|
|
Airspeed
|
SDP33
|
|
External Interfaces
|
|
Servo/ESC Outputs
|
12
|
|
RS232 Serial IO
|
2.5
|
|
UAVCAN IO
|
1
|
|
ADC Inputs
|
2
|
