Introduction

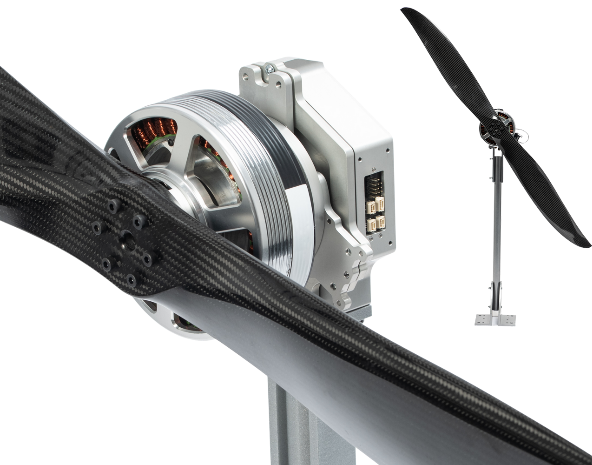

The Flight Stand 50 thrust stand allows you to precisely characterize and evaluate the performance of your motors and propellers by measuring thrust, torque, RPM, current, voltage, temperature, propeller efficiency and motor efficiency.
Specifications
Specification
Standard
Pro
Measurement Information
Sampling rate
100 Hz
1,000 Hz
Thrust calibration
Internal standard
ASTM E74
Torque calibration
Internal standard
ASTM E2428
Crosstalk calibration
Yes with 48 points
Yes with 1056 points
Voltage and Current
Voltage range
0 V to 180 V
0 V to 180 V
Current range
0 to 300 A
0 to 300 A
Thrust
Range
±500 N
±500 N
Torque
Range
±30 Nm
±30 Nm
RPM Sensor
Range
400 to 30 000 RPM
400 to 30 000 RPM
Temperature Sensors
PT100 sensor range
-30 °C to +100 °C, ±2 °C
-30 °C to +100 °C, ±2 °C
IR sensor range
N/A
-40°C to +125°C for sensor
temperature
-70°C to +380°C for object
temperature
General Analog Inputs
Range
N/A
2 inputs of ±10 V differential

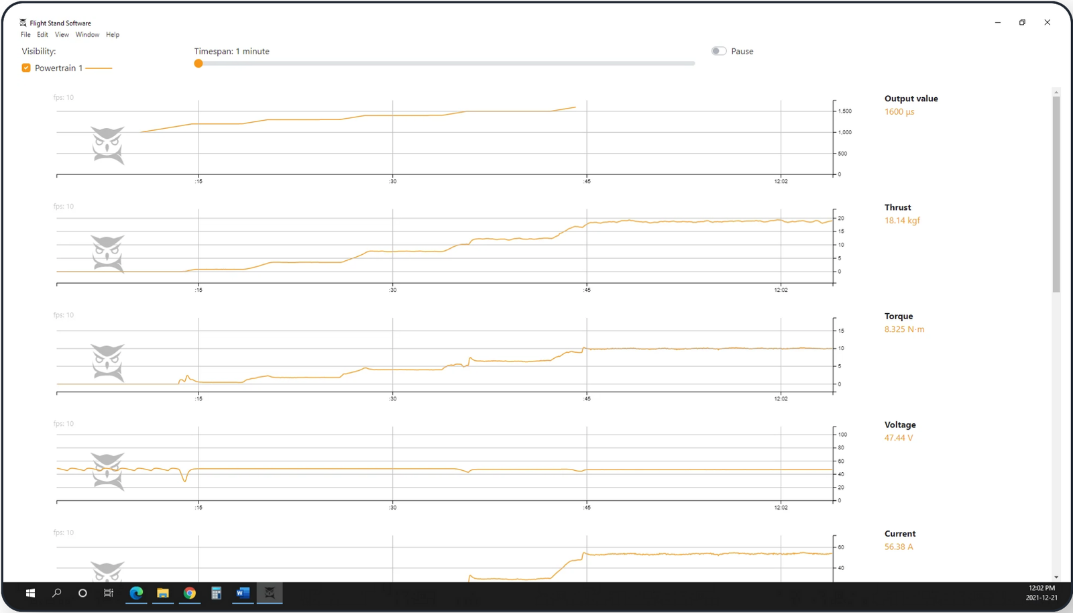

Flight Stand Software
The Flight Stand Software controls your thrust stand and records data. You can manually control tests with a throttle slider or automate tests using a table, data from a .CSV file, or the Python API.
