Overview

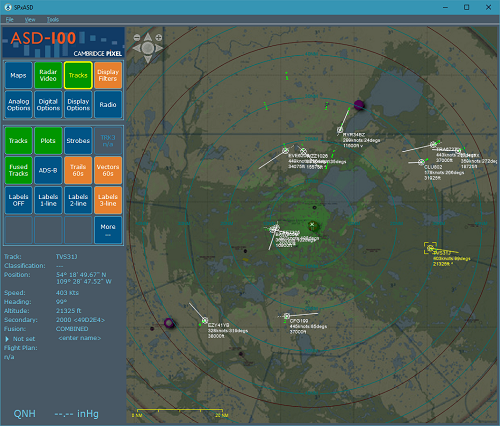

ASD-100 can interface to a number of different ASTERIX data inputs, including: radar video (CAT-240), plot/track reports (CAT-48), ADS-B (CAT-21), and safety alert messages (CAT-4). All data is presented on a large, clear PPI display, overlaid on top of user-selectable maps. Cambridge Pixel's field-proven scan converter is built into ASD-100, providing a smooth, flexible and accurate display of the radar video for up to four streams of radar video (e.g. raw/background, processed, MTI and secondary). Four track receiving channels are also available, allowing primary, secondary and fused/combined tracks all to be received and displayed simultaneously.
The graphical user interface has been designed with modern touchscreen displays in mind. The common controls are readily accessible and operated by large buttons. Common view controls, such as pinch-to-zoom and slide-to-pan are supported. Tools available within ASD-100 allow intercept vectors to be calculated and displayed, rulers to be drawn between reference points and targets, and individual tracks to be designated. All common user operations may be accessed through fast, easy-to-use controls.
Furthermore, ASD-100 features configurable soft buttons, allowing the user interface to be customised. For example, buttons may be configured to control SPx Server, launch external system commands, provide shortcuts to adjust the ASD-100 display.
ASD-100 is designed to work with Cambridge Pixel's suite of processing applications, including SPx Server, SPx Fusion Server and SPx SafetyNet Server. System integrators may easily build air surveillance solutions by selectng the necessary applications. For example, SPx Server to provide tracking from primary or secondary radars, SPx SafetyNet Server to generate CAT-4 alerts and ASD-100 to provide the operator display(s).
Feature
■ Ready-to-run application for Windows
■ Windows 10 compatible
■ Four channels of ASTERIX CAT-240 radar video input
■ Four channels of ASTERIX CAT-48 plots/tracks input
■ ASTERIX CAT-21 ADS-B input
■ Safety alert input (ASTERIX CAT-4) and display of warnings
■ ASTERIX CAT-8 weather data display
■ High-quality scan-conversion:
• Low CPU usage
• Real-time and sweep fading (persistence)
• Programmable colour
■ Multiple map support:
• Tiled maps
• Terrain contour map
• Raster maps (up to 10 layered images)
• User map graphics
■ Aeronautical chart support:
• Downloaded on demand, cached locally
• Visual Flight Rules (VFR)
• Low and high altitude routes
■ SkyVector charts updated every 28 days, and are automatically downloaded from the internet as tile images at different scales
■ Global chart support available, operators can choose between World-High, Low or VFR charts
■ Flight plan support:
• Create, edit and save flight plans
• Callsign, Mode 3/A code, aircraft type, route and ETA information
• Flight plans matched against current tracks
■ History trails and target vectors ("leader lines")
■ Selective track filtering, based on speed and altitude
■ Configurable target label display
■ Configurable soft buttons for customised operator display
■ Full zoom and off-centre control
■ Multiple rulers with fixed end positions or tied to targets
■ Intercept calculation and graphical display
■ Overlay graphics:
• Range rings, with auto and manual modes
• Compass rose
• "Quick Lines"
■ Range scale indicator
■ Cursor lat/long and terrain elevation readout
■ Selectable metric or imperial distance units
■ Selectable coordinate format: degs, DMS, UTM, MGRS
■ Software Defined Radio support
■ Easy configuration Wizard
■ PPI snapshot function
■ System status display, showing current numbers of received plots/tracks
