Overview

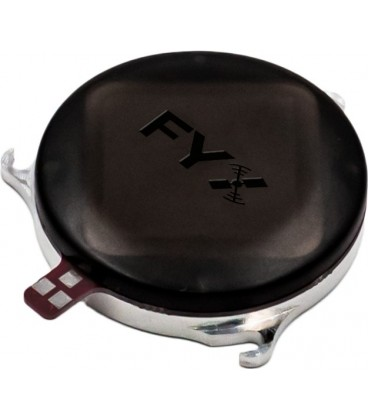

An aircraft is only as reliable as the weakest link. Many operators invest a fortune into equipment to ensure a stable system but are forced to settle for a consumer-level GPS source. truFYX brings aviation integrity and design assurance to all aircraft including UAS and UAM.Parameters
| Specification | Value |
| Part Number | UAV-1002809-001 |
| GPS L1C/A w. SBAS |
12 GPS Channels 3 SBAS Channels |
| HPA / VPA | 5 m / 7 m |
| Velocity Accuracy | 3 m/s |
| Time Accuracy | 30 ns |
| Update Rate | 5 Hz |
| SIL/SDA | 3/2 |
| Sensitivity | |
| Acquisition | -148 dBm |
| Tracking | -167 dBm |
| Electrical Characteristics | |
| Input Power | 5.5-31V, 350mW |
| Mechanical Characteristics | |
| Size | 47.37×8.21 mm |
| Weight | 20 grams |
| Interfaces | |
| RS-232 | 115200bps |
| Protocol | NMEA 0183 + RAIM or MAVLink |
| Time Pulse | RS-232, 1pps |
