Introduction

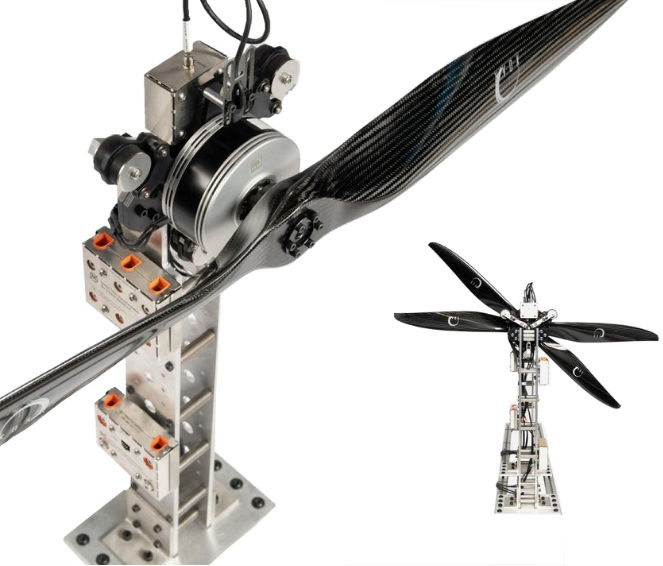

The Series 1780 Test Stand is the perfect tool for characterizing the propulsion systems of medium and large drones. The stand supports single motor or coaxial testing in several configurations. It comes in three convenient sizes to suit your testing needs.

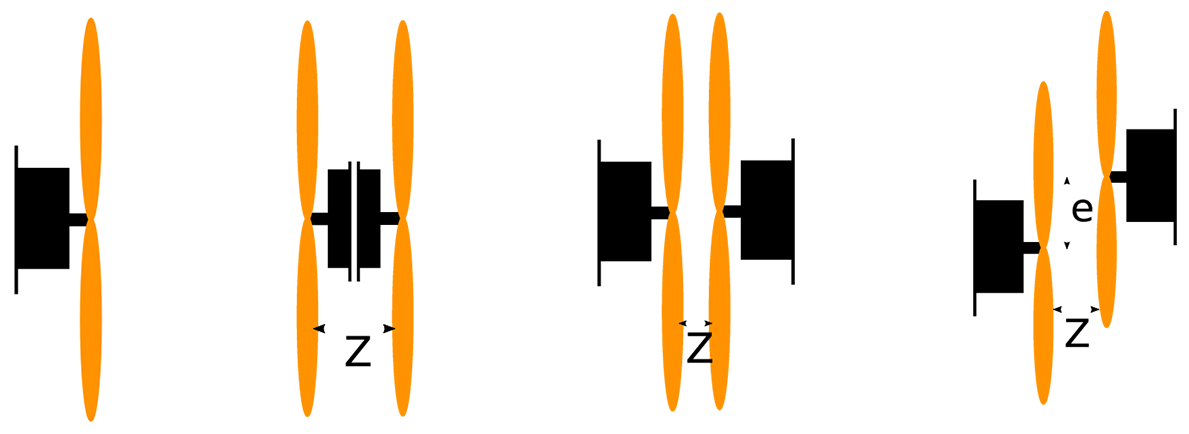

The stand supports multiple configurations such as: single motor, coaxial back-to-back, coaxial face-to-face and coaxial offset.

Specifications

Thrust	-25 to 25 kgf	-40 to 40 kgf	-75 to 75 kgf
Torque	-12 to 12 Nm	-18 to 18 Nm	-48 to 48 Nm
Voltage	0 - 60 V	0 - 60 V	0 - 100 V
Current	0 - 100 A	0 - 150 A	0 - 500 A
Angular	0 - 190k	0 - 190k	0 - 100k
speed	RPM	RPM	RPM

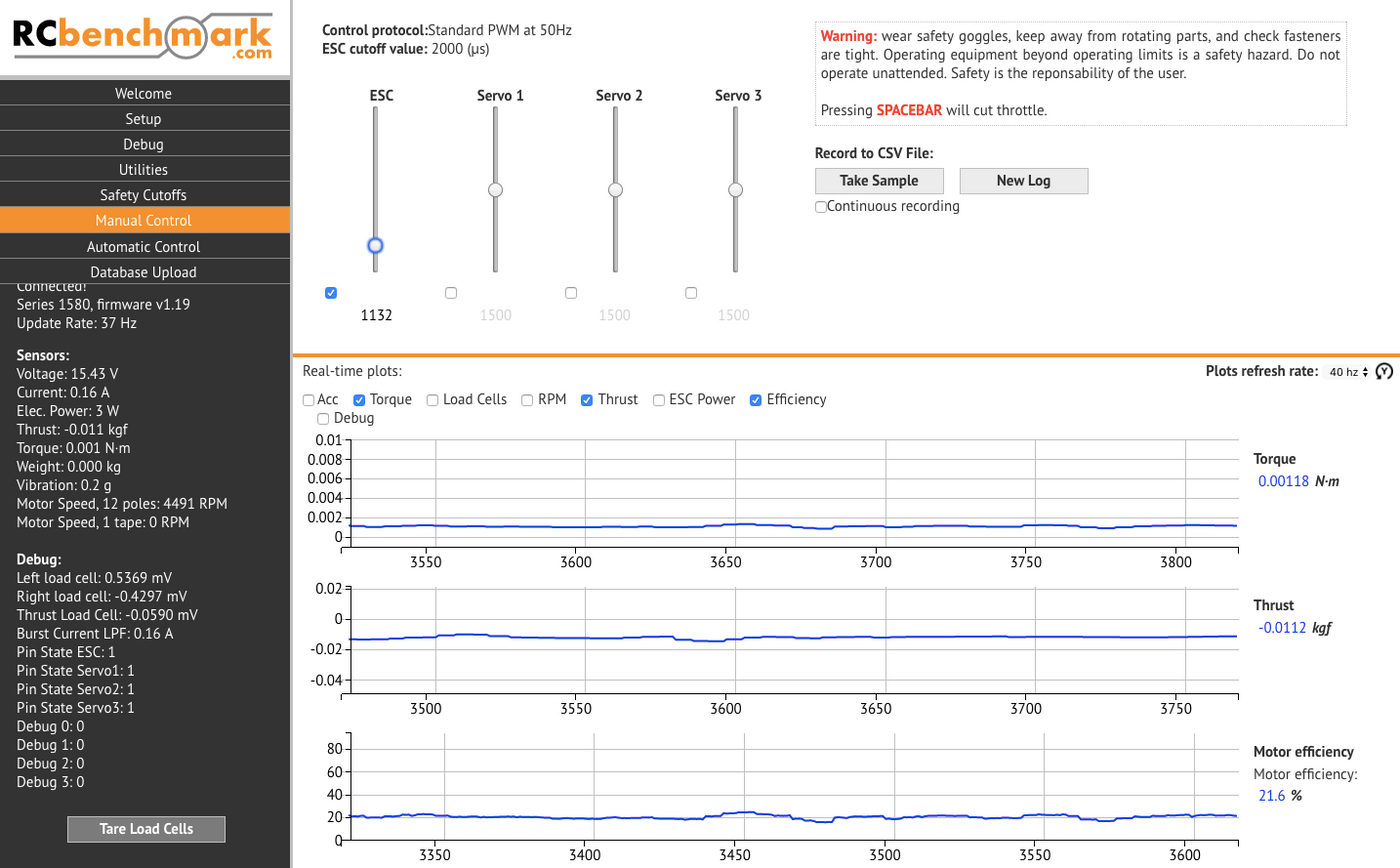

Features

■  Manual control

■  Automated control

■  Export data to .CSV

■  UDP connection

■  Set safety cut-offs

■  Set working units
