Introduction

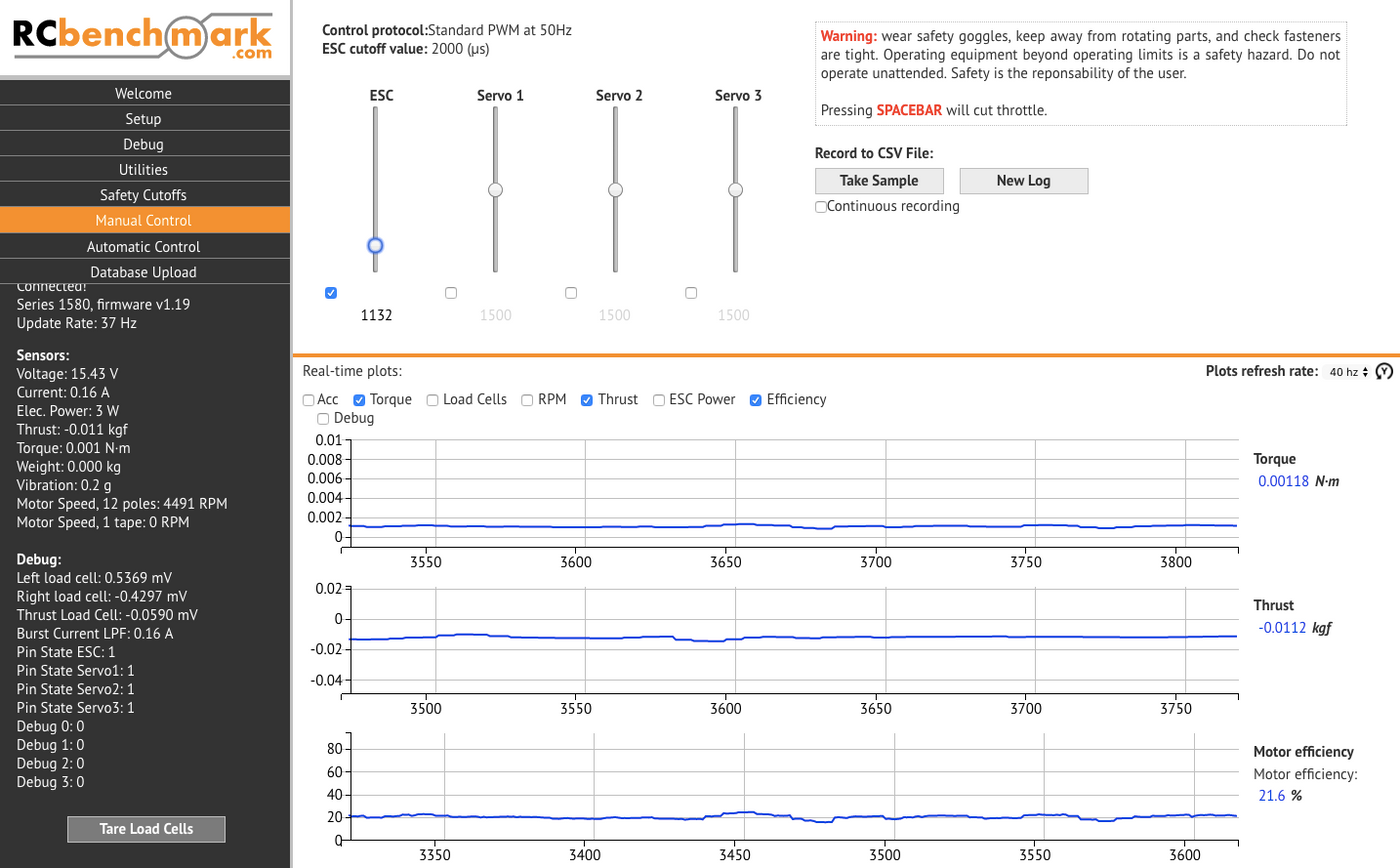

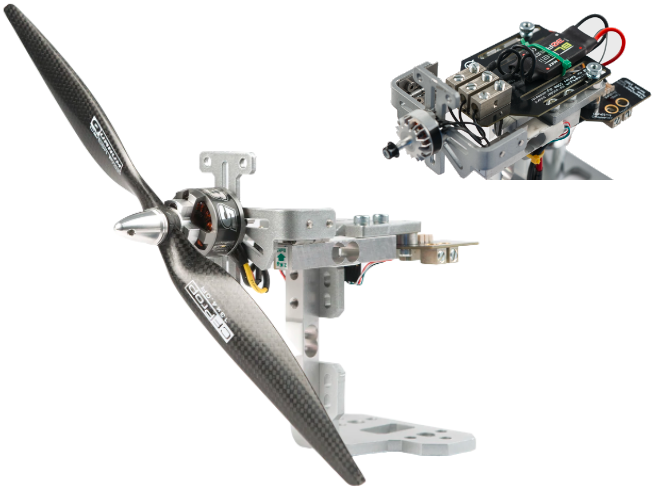

The RCbenchmark Series 1580 Test Stand is designed to greatly reduce the time required for characterizing, testing, and designing brushless motor propulsion systems, while obtaining precise and accurate results. The Series 1580 is a dynamometer developed specifically for drone designers with a USB interface and powerful software for automated control and data-logging.

Specifications

■  Max Thrust: 5 kgf

■  Max Torque: 2 Nm

■  Max Voltage: 50 V

■  Max Current(continuous): 55 A

■  Max Measurement Rate: 8 Hz

Features

■  Manual control

■  Automated control

■  Export data to .CSV

■  Pre-built scripts

■  Set safety cut-offs

■  Set working units
