Overview
AdvanceGuard provides a reliable, low cost solution that delivers continuous automatic perimeter surveillance. From small sites to large complex compounds, AdvanceGuard provides the most comprehensive security surveillance system available. It is ideal for applications such as airport surveillance, critical national infrastructure and commercial installations.
The rules-based system can be adapted and features can be added to suit the needs of each individual site. The all-weather radar system can detect, track and identify the exact location of any threats. By detecting both inside and beyond the perimeter, it can identify potential intruders before they can enter the site at any time of day or night.
Application

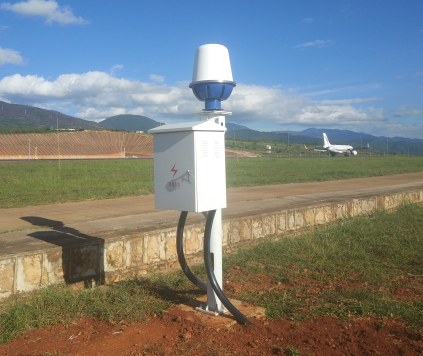

Airports
Ports & Harbours
Industry sites
Military
Energy generation sites
Oil and Gas
Boards
Fish farms
Prisons
Data centers
Radar Model and Specification
| Radar Models | HDR300 | HDR200 | HDR100 |
| Indicative Range | Up to 3,000 metres | 1,000 metres | 300 metres |
| Update Rate | 1 Hz | 2-1 Hz | 4-1 Hz |
| Azimuth Beamwidth | 0.9° | 1.8° | 1.8° |
| Specification | |||
| Operating Frequency | 76 - 77 GHz | ||
| Operating Range |
5-2000m Person 5-3000m Vehicle |
||
| Range Resolution | Better than 0.3 m | ||
| Azimuth Beamwidth | 0.9°~1.8° | ||
| Elevation Beamwidth | 3° | ||
| Infill Elevation Beam | Optional | ||
| Measurement Rate | 800 per rotation | ||
| Field of View | 360° | ||
| Update Rate (Rotation Speed) | 1s (1Hz) | ||
| Data Connection | 1 Gbps Ethernet | ||
| Power Consumption | 24Watts/36 Watts model depend | ||
| Power Supply | 24 Volts DC | ||
| Weight | 22 Kg | ||
| Mounting Height |
HDR311: 4-6m HDR321 and HDR331: 6-8m |
||
| Safe Working Distance (from radome) | 0.1m | ||
| Operating Temperature | -20°C to + 60°C | ||
| Environmental |
UL50/50E IP 67 BS EN 60068-2-52:1996 Test Kb Severity 3 |
||
| Compliance | CE Marked | ||
| EMC Directive | 2014/30/EU | ||
| Low Voltage Directive | 2014/35/EU | ||
| Radio Equipment Directive | 2014/53/EU | ||
