SPx Server

Overview

The SPx Server software module is integrated with the SPx Processing library, which provides a comprehensive range of radar processing capabilities. After acquisition and prior to data processing, the video may be passed through the standard SPx processing functions to implement gain control, area-based video removal (masking), CFAR thresholding, interference suppression or other functions. Additionally, user-defined processes may be incorporated into the processing chain to allow a completely custom solution using SPx as the integrating framework.

When extracted data is correlated from scan to scan, the track correlator uses multiple hypotheses to support ambiguous interpretations of the radar video. The filter uses position, size, shape and historical measurements to correlate existing tracks with new data, providing updated positions and dynamics, as well as a confidence estimate. The behaviour of historical track data is analysed to help interpretation providing a great-level classification capability.

Optional video recording capabilities are available in the compatible SPx Record module that records the polar radar video to support, for example, incident recording or training applications.

Feature
■ Multi-function primary and secondary (IFF) radar processor
■ Radar video from HPx cards or network
■ Radar processing:
    • Filtering
    • CFAR Thresholding
    • Area-based video filtering/masking
    • Clutter map generation
■ Plot Extraction and merging
■ AIS track display and recording
■ Multi-hypothesis target tracking
■ Model-based tracking extension
■ Fully configurable tracking
■ Area-dependent tracking parameters
■ Full auto track initiation
■ Redundant operation, with automatic failover
■ Built-in world coastline database
■ Static or moving platform
■ NMEA navigation input for ship systems
■ Radar network distribution
■ Radar, NMEA and AIS record/replay

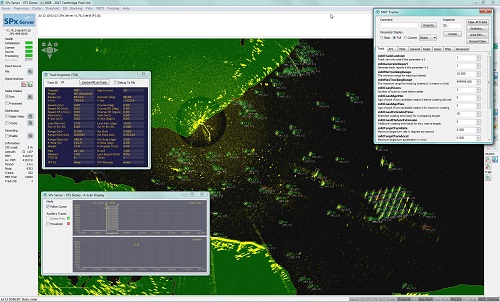

■ Comprehensive configuration GUI
■ Windows or Linux versions
■ Network remote control
■ Receipt and tracking from plot data
■ Receipt and distribution of lidar data
■ Video, plot and track output to network
■ Fully configurable for:
    • Vessel traffic systems (VTS)
    • Surface movement radars
    • Air defence
    • Security (personnel, vehicles etc.)
    • Military naval
