SPx RDR

Overview

The RDR application supports many different types and formats of input data, including several ASTERIX categories, NMEA-0183 messages and RTSP video. Creating and configuring channels to receive data is simple and intuitive and visual feedback is given to confirm that data is being received correctly. Data received across all of the channels is then recorded, synchronised within a common recording file, ensuring that it is also correctly synchronised on replay.

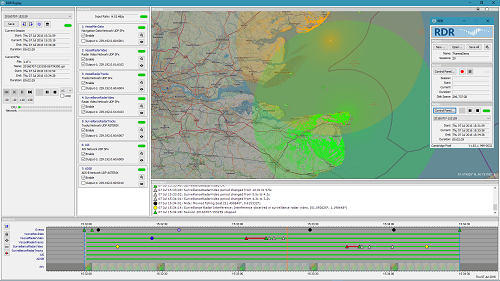

RDR's graphical user interface include an overview display, showing radar video and tracks in the appropriate world-referenced location, on top of a tiled map underlay. A visual timeline display shows the status of each channel as the recording proceeds. The timeline also shows periodic snapshots of the radar or camera video, as well as event markers. Start/stop markers may be set within the timeline allowing replay to be looped within the defined interval or sections of recordings to be exported.

On replay, data may be output via user-defined output channels, routing the data to an appropriate physical output. For example, AIS data may be replayed out onto the host system’s serial port or Ethernet port, regardless of which one it was input via. For radar video replay, the application is fully compatible with Cambridge Pixel’s HPx-300 radar output card. RDR can therefore be used as part of an analogue radar record and replay system. Replay mode provides convenient navigation features, such as allowing the user to jump to specific times or events.

Feature
■ Ready-to-run application software for Windows
■ Windows 10 compatible
■ Multiple input channels
■ Multiple output channels
■ Supported input and output data includes:
    • Primary radar video
    • Primary and secondary track messages
    • ADS-B messages
    • AIS messages
    • Navigation data
    • RTSP network video
    • Directshow device video
    • RTP audio
    • Directshow audio
    • Screen recording (via lightweight "Agent" client)
    • Generic network packet (without interpretation)
■ ASTERIX data support includes:
    • CAT-240 (radar video)
    • CAT-48 (plot/track messages)
    • CAT-21 (ADS-B target reports)
    • Local GUI and network control
    • Recording to local hard drive or NAS
    • SQL database recording of navigation, track, AIS and ADS-B data
    • Schedule recordings
    • Auto delete of old recording sessions
    • Replay radar video in ASTERIX CAT-240 format or as standard radar signals using HPx-300 card
■ Visual display of data being recorded:
    • Timeline display with adjustable timescale and thumbnails
    • "Quick-look" feature
    • Source status indicators
    • Data synchronisation across channels
    • Event marking (automatic, user-defined, location-based)
    • Export recordings or sections of recordings
