Overview
ASD-View is part of Cambridge Pixel's air surveillance display solutions, which also include the ASD-100 application for display of primary and secondary radar data and associated information such as plots, tracks and safety alerts.
In 2020, ADS-B Out capability will be mandatory on aircraft equipment in many regions of the world. Additionally, ADS-B is increasingly used by helicopters, light aircraft, drones, gliders, airport vehicles and maritime vessels such as FSOs and offshore maritime platforms with helicopter landing areas.

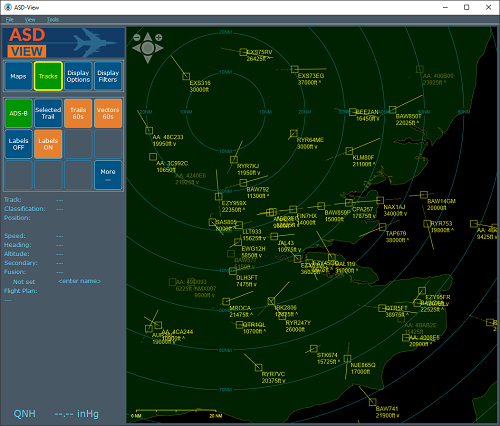

ASD-View runs on any modern Windows (7/8/10) PC, accepting input data from the network in a number of different formats, including ASTERIX CAT-21. The graphical user interface has been designed with modern touchscreen displays in mind. To this end, the frequently-used controls are readily accessible and operated by large buttons. Common view controls, such as pinch-to-zoom and slide-to-pan are supported.
Feature
■ Complete ready-to-run application for Windows
■ Windows 7/8/10 compatible
■ ASTERIX CAT-21 ADS-B data input
■ Beast and AVR ADS-B data input
■ NMEA 0183 navigation data to support moving platforms
■ Multiple map support (on/off line):
• Tiled maps
• Terrain contour map
• World map
■ History trails and target vectors ("leader lines")
■ Configurable target label display
■ Flexible configuration options
■ Full zoom and off-centre control
■ Display filters
■ Overlay graphics:
• Range rings
• Rulers
• Range scale indicator
■ Multiple track monitor windows
■ Easy configuration wizard
