Overview
RadarWatch is a ready-made application capable of displaying radar video, tracks, AIS, ADS-B and camera video, within multiple windows and across multiple screens. RadarWatch takes all of its inputs from network sources and supports a number of standard data formats, making it ideal for use in distributed architectures.

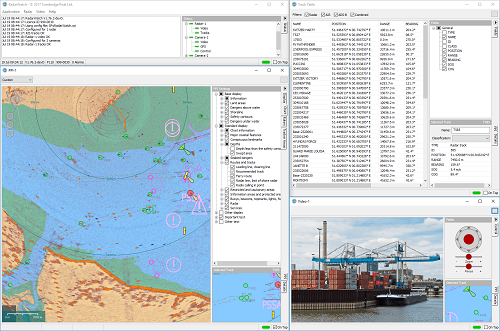

Designed to support multiple screens, RadarWatch allows the operator to drag, resize and reposition multiple display windows at will. The layout and graphics settings for all RadarWatch windows may be saved and restored with ease. Featuring Cambridge Pixel's trusted scan conversion technology, RadarWatch provides smooth, reliable and accurate display of radar video, along with symbology, on top of tiled maps or S57 electronic charts.
Comprehensive alarm logic is built into RadarWatch, allowing alarms to be generated under user-defined conditions. Graphical support is provided for defining alarm areas, alarm gates (uni- or bi-directional) and reference points. RadarWatch also performs CPA/TCPA calculations between target pairs and between targets and reference points. Alarms may be visual and audible, and network messages may also be generated and sent out to external equipment.
Feature
■ Ready-made display application for Windows (7, 8, 10)
■ Supports up to 4 radar inputs
■ Supports up to 16 camera inputs
■ Open standards data inputs:
• ASTERIX CAT-48 radar tracks
• ASTERIX CAT-240 radar video
• NMEA-0183 platform data
• NMEA-0183 AIS data
• ASTERIX CAT-21 ADS-B data
■ Multi-screen support
■ Track Table
■ Recording/replay Support (via RDR)
■ Multiple windows:
• 2x radar PPI windows
• 2x camera video windows
• 1x video multiview window
• 1x track table window
• 1x active alarms window
■ Underlay maps: S-57 charts, tiled maps, world vector shoreline map, radar coverage
■ Comprehensive Alert Logic:
• Area-based
• Gate crossing
• Proximity
• Speed
• CPA/TCPA
■ Camera Control: slew-to-cue and manual control
■ Typical Applications:
• Coastal surveillance
• Port and harbour security
• Simple vessel traffic monitoring
• Search and rescue
