Overview

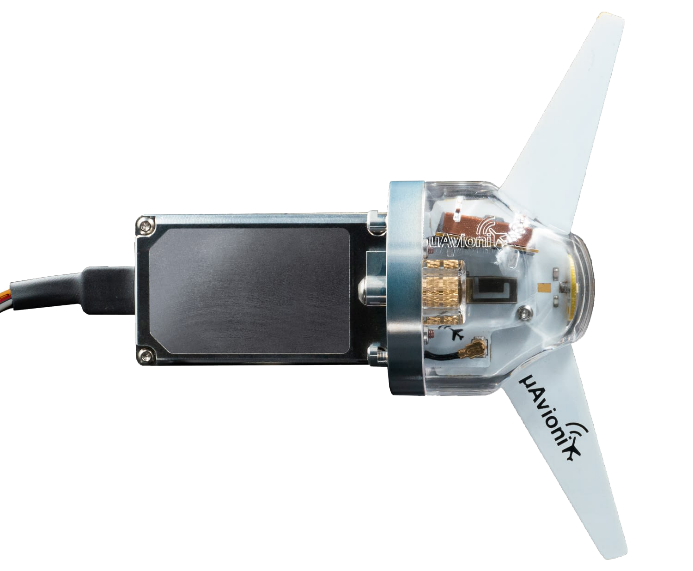

tailBeaconX is the next era of global ADS-B. Compatible with surface and space-based ADS-B surveillance systems, tailBeaconX is a Mode S Extended Squitter ADS-B transponder and aviation GPS integrated into an LED rear position light. With global compliance, tailBeaconX is the key to limitless destinations.
Parameters
| Specification | Value |
| Input Voltage | 11-31V DC |
| Operating Power | 3 Watts |
| Size | 113x105x48mm |
| Weight | 140 grams |
| SDA/SIL | 44595 |
| Operating Temp | -45°C to 70°C |
| 1090ES ADS-B Transmitter | |
| WAAS GPS | |
| Tracking | -166dBm |
| Reacquisition | -160dBm |
| Cold Start | -148dBm |
| LED Position Light | |
| Color | Aviation White |
| Intensity | 20 candelas |
| Control Head | |
| Physical | RS232 or Power Line Modem |
| Protocol | UCP |
| Regulatory | |
| FCC ID: | 2AFFTP200S |
